Waterfall Table & Basin Playground Pump System

Waterfall Table & Basin Playground Pump System

The Cadron Creek Play Waterfall Table & Basin Playground Pump System provides an ideal sensory play experience for developing sponge-like minds. Children pump the water as it falls in a cascade from the higher levels to the lower level, finally ending in a basin. The table allows the kids to dam up the water, decorate with rocks, experiment with little boats navigating the current over the water falls… the possibilities are endless!

No well is needed! Our system includes our stainless steel hand pump, a stainless steel tank, and a plastic wood/stainless steel water fall table and basin. Water from a pressurized water line fills the tank.

Share the fun!

Description

Inspire Learning Through Water Play

  • Explore science concepts: “What happens when you add obstacles like rocks or sand? Does it make the water flow faster or slower?”
  • Encourage social and emotional development by practicing taking turns, designing little boats out of leaves or paper, etc.
  • The Water Fall Table with Playground Pump System creates a playscape in which children are free to imagine, explore and discover.

At Cadron Creek Play, it is our mission to get kids off the screens & into the outdoors.

Enliven your park or playground with Cadron Creek Play’s Waterfall Table with Playground Pump System! It provides an ideal sensory play experience for developing sponge-like minds. The Waterfall Table features Cadron Creek’s Stainless Steel Hand Pump at the top, which simulates the action of a traditional water hand pump. However, no well is needed. The pump can connect to a pressurized water line (like city water) or can be set up for recirculation. The water connection will automatically refill the tank as the children hand-pump the water out of the tank. The tank is built-in to the table, making for easy installation and maintenance. The children pump the water and it falls in a cascade from the higher levels to the lower level, finally ending in a basin. The table allows the kids to dam up the water, decorate with rocks, experiment with little boats navigating the current over the waterfalls… the possibilities are endless! Kids will have puddles of fun with the Waterfall Table and Playground Pump System!

Cadron Creek Playground Pumps and Water Tables are the highest quality water play features on the market. Cadron Creek Play products are built for indoor and outdoor use and can sustain harsh climates. With high-quality materials and a five-year warranty, the Waterfall Table and Playground Pump System has minimal maintenance requirements.



Specs

HOW IT WORKS

Water from the pressurized water line fills the plastic tank and automatically shuts off at the fill line. (A shut-off valve will need to be installed in the incoming water line.) For recirculation, fill the basin with water which will flow into the tank. The tank is connected to the pump by a durable flex hose. The children then hand-pump the water out of the tank. The water refills as it’s pumped out. The tank is stored within the table where it can be easily reached for ventilation and maintenance.

MAINTENANCE

Pump: Periodic maintenance is required every 2-3 months. Cadron Creek Play suggests cleaning of the piston assembly with fresh clean water. Be sure to inspect the wear items like cup seals and O-rings. These can be replaced as needed using the Cadron Creek Play Maintenance Kit.

Table: Wipe down with damp cloth as needed. Periodic cleaning will depend on the environment in which it is installed. Inspect for loose hardware and tighten as needed.

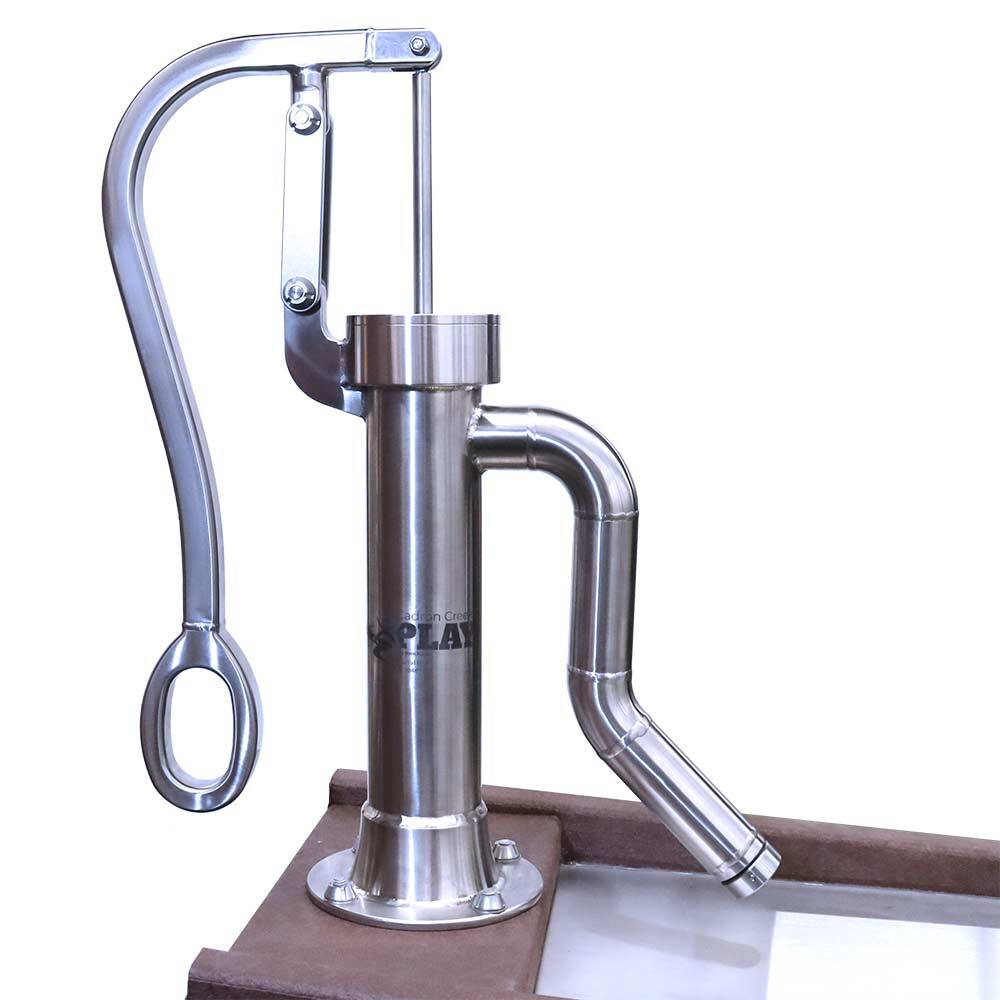

PUMP DETAILS & DIMENSIONS

  • 22 3/8  inches tall from base to top of the handle
  • Stainless steel tank
  • Connects to pressurized water line
  • Stainless steel hand pump
  • Designed for heavy-duty kid traffic
  • 5-year warranty on all manufactured parts

TABLE DETAILS & DIMENSIONS

  • 50 1/8 inches tall from ground to top of the pump handle
  • Materials: Plastic Wood, Stainless Steel
  • Some assembly required. Instructions included.
  • Installation requirements: Concrete pads for each leg (10 total), 6×6 inch squares. 3/4” incoming water line connection, if using pressurized water source. See Manual for Details.
  • 5-year warranty on all manufactured parts

SECURITY FEATURES

  • Security nuts for pump handle links
  • Security bolts for pump top plate
  • Security bolts for pump flange
  • Security nuts for waterfall table and basin table anchors
  • Security bit and socket

CONTENTS

  • (1) Stainless Steel Playground Pump
  • (1) Waterfall Table
  • (1) Stainless Steel Tank with All Required Fittings
  • (1) Water Basin Table


Waterfall Table and Basin Playground Pump System Diagram



Parts

  • Pump Piston Assembly

    Piston Assembly

    View Details
  • Seal Maintenance Kit

    Seal Maintenance Kit

    View Details

Accessories

  • Pump Sealing Plug

    Sealing Plug

    View Details
  • Quick connect wrench

    Quick Connect Wrench

    View Details
  • Pump Quick connect O-ring

    Quick Connect O-Ring

    View Details
  • Seal pick tool

    Seal Pick Tool

    View Details

Warranty

Cadron Creek Play’s products are manufactured in the U.S.A. with the highest quality materials. They are designed to withstand a lot of use, and therefore come with a five-year limited warranty. Our playground pumps are the finest hand pumps on the market with Stainless Steel components, competitive pricing, and expert advice.

Cadron Creek Play Limited Warranty

All Cadron Creek Play pumps and components are covered by a limited warranty. Limited Warranty is contingent upon proper installation, use and maintenance of the pump, part or accessory.

If you suspect a defect, please give us a call or contact us online. We will need as much information as possible to determine the cause of the problem. Please be ready to provide photos or any other information that will be useful in determining whether the product is defective and covered by our limited warranty. We will contact you with a Returned Goods Authorization (RGA) form and shipping label for the return of any defective products.

Not Covered By Warranty

Wear and tear is damage that naturally and inevitably occurs as a result of normal wear or aging. These damaged parts are not covered by our limited warranty.

Installation, Use and Maintenance

Cadron Creek Play provides technical support and education on all products. An Owner’s Manual is included with the purchase of each pump, part or accessory that covers installation, use and maintenance. For each pump, a downloadable diagram is available under the SPECS tab for that pump (just select the respective pump under Products). You may also give us a call or contact us online for any additional support on any of our products.
