Pump-n-Play Junior

Pump-n-Play Junior

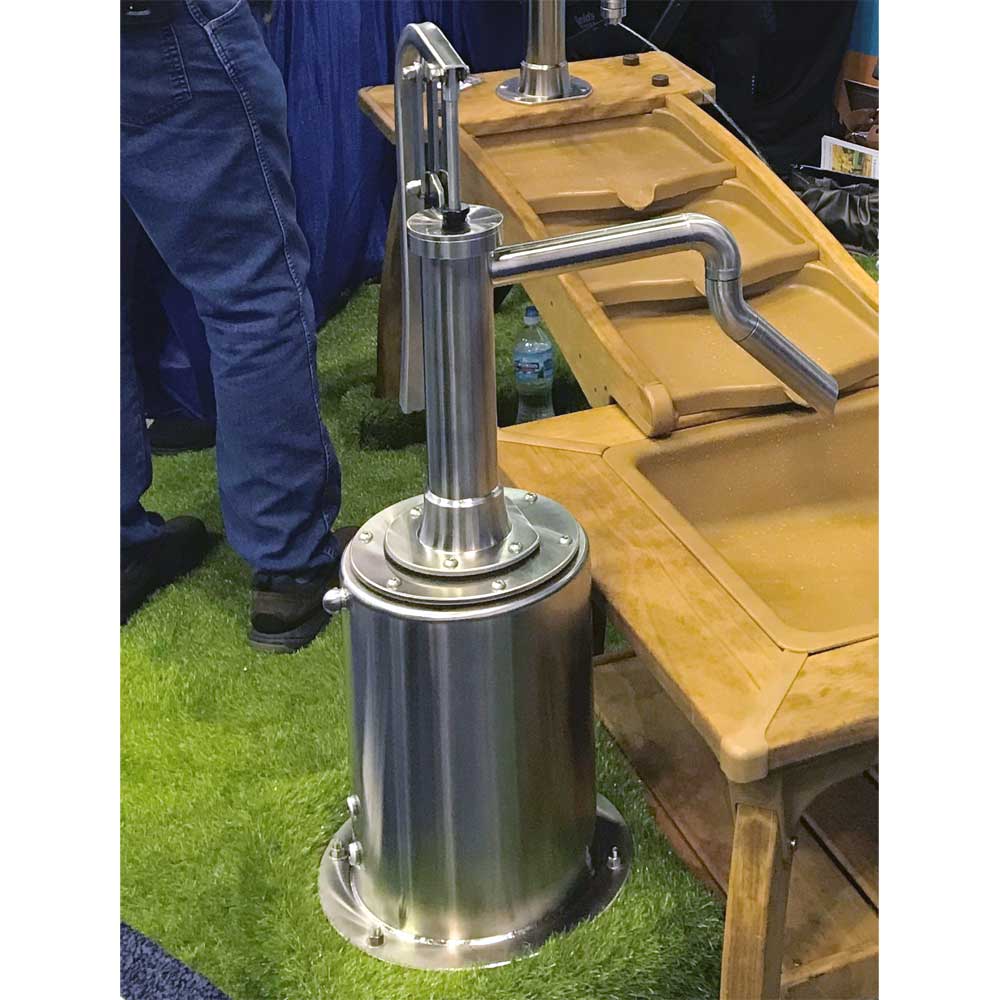

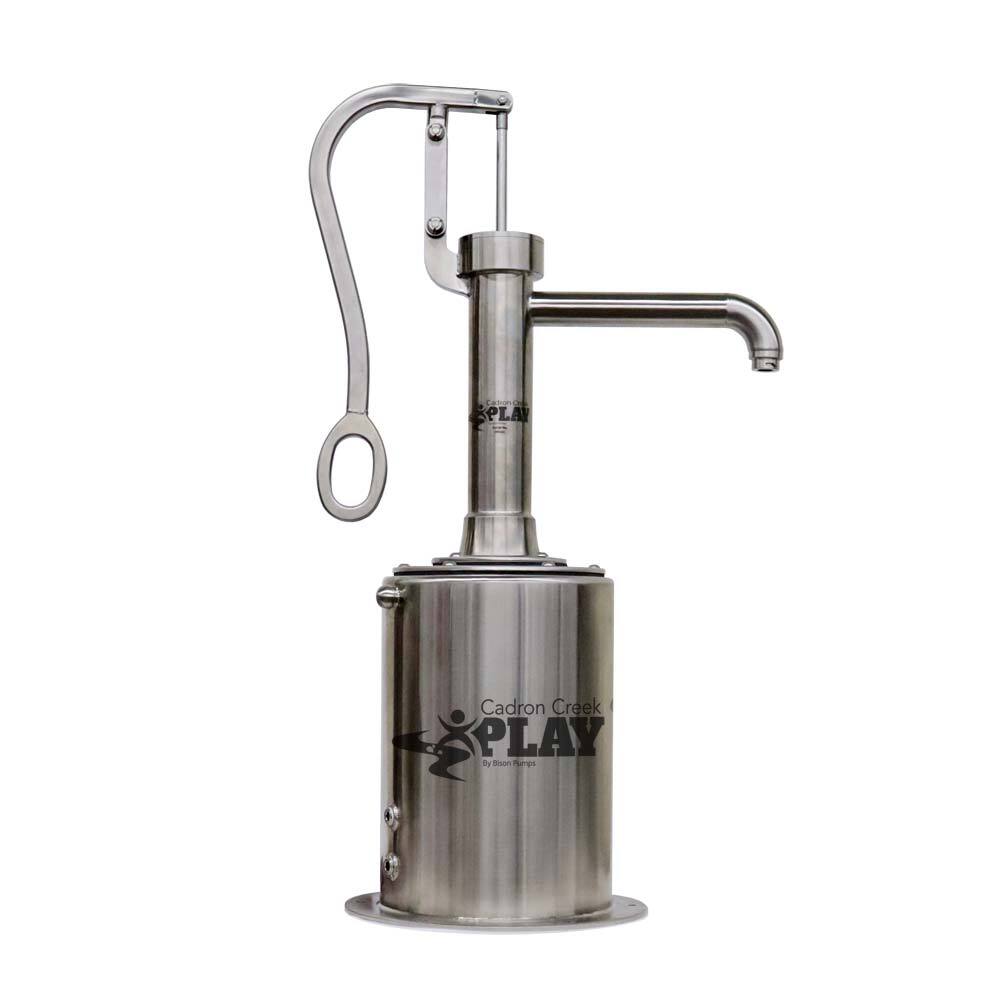

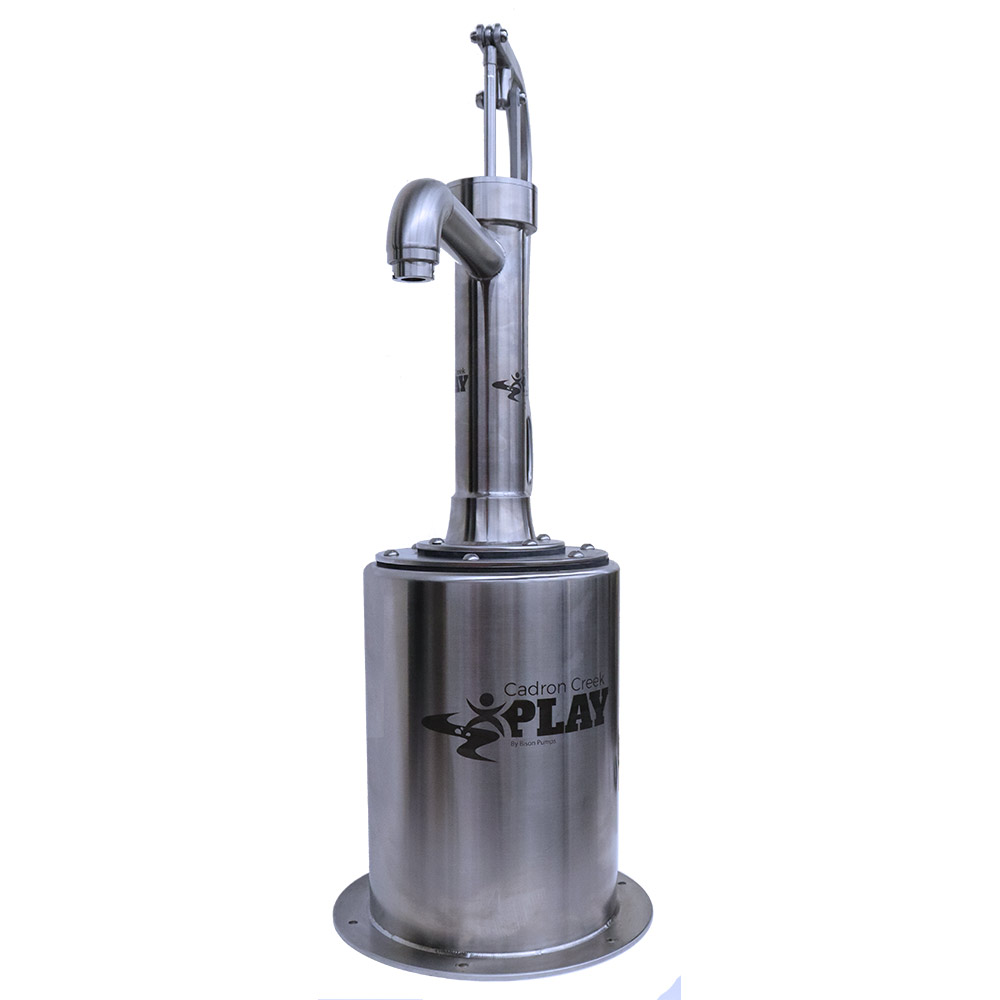

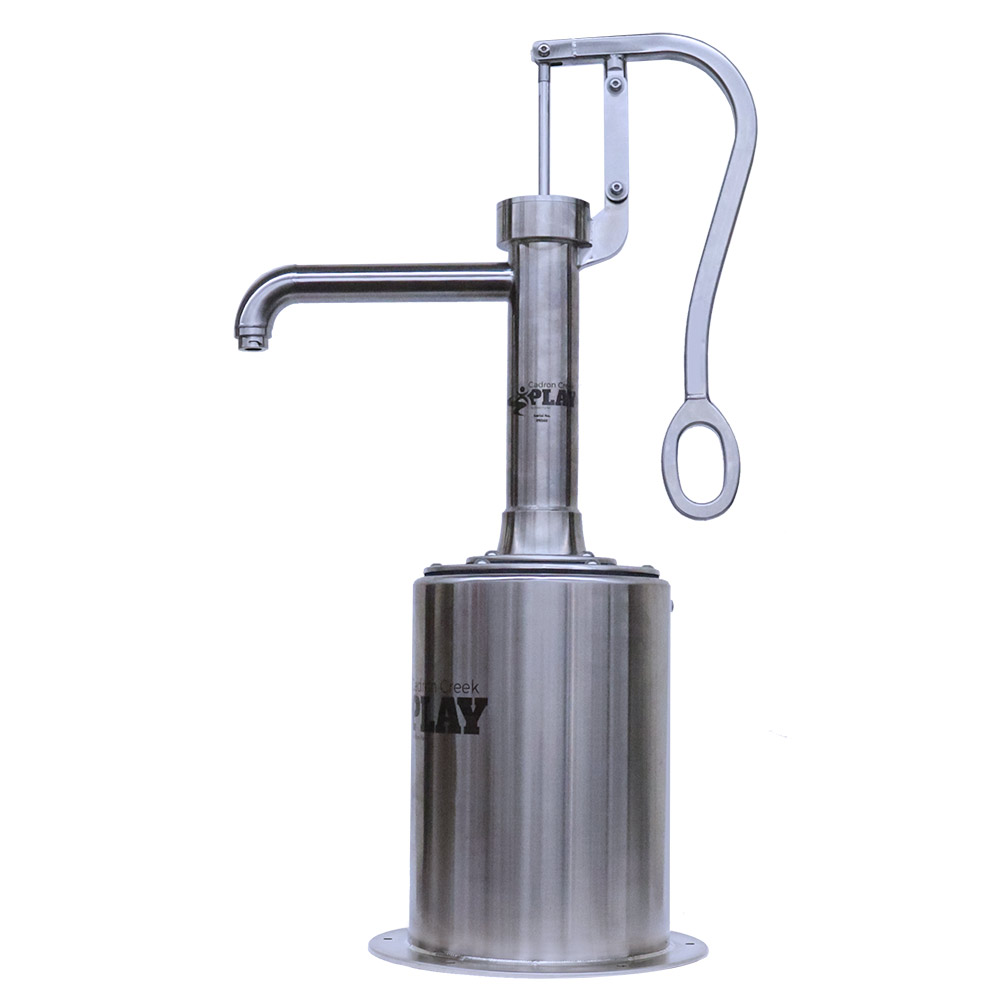

The Cadron Creek Play Pump-n-Play Junior playground pump system is designed for smaller children (ages 3-5) and combines our stainless steel hand pump with a stainless steel tank for a total height of 39”. This combination is just right for toddlers and pre-school children.

No well is needed! Our Pump-n-Play Junior includes our stainless steel hand pump and a stainless steel tank. Water from a pressurized water line fills the tank and automatically shuts off at the fill line. The water refills as it’s pumped out.

Share the fun!

Description

Cadron Creek Play’s Pump-n-Play Junior Playground Pump System is an exciting water play feature for your park or playground. The manually operated stainless steel pump simulates the action of a traditional water hand pump. However, no well is needed as it is connected to a pressurized water line (like city water) which automatically refills the above-ground tank as the children hand-pump the water out of the tank. With a unique draw like the Pump-n-Play Junior Playground Pump, families will visit the playscape again and again…and tell their friends!

The Pump-n-Play Junior Playground Pump System includes the highest quality playground pump on the market. Made of Stainless Steel, the pump and tank are hand-polished and manufactured 100% in the USA. With sturdy welds and a five-year warranty, they have minimal maintenance requirements.

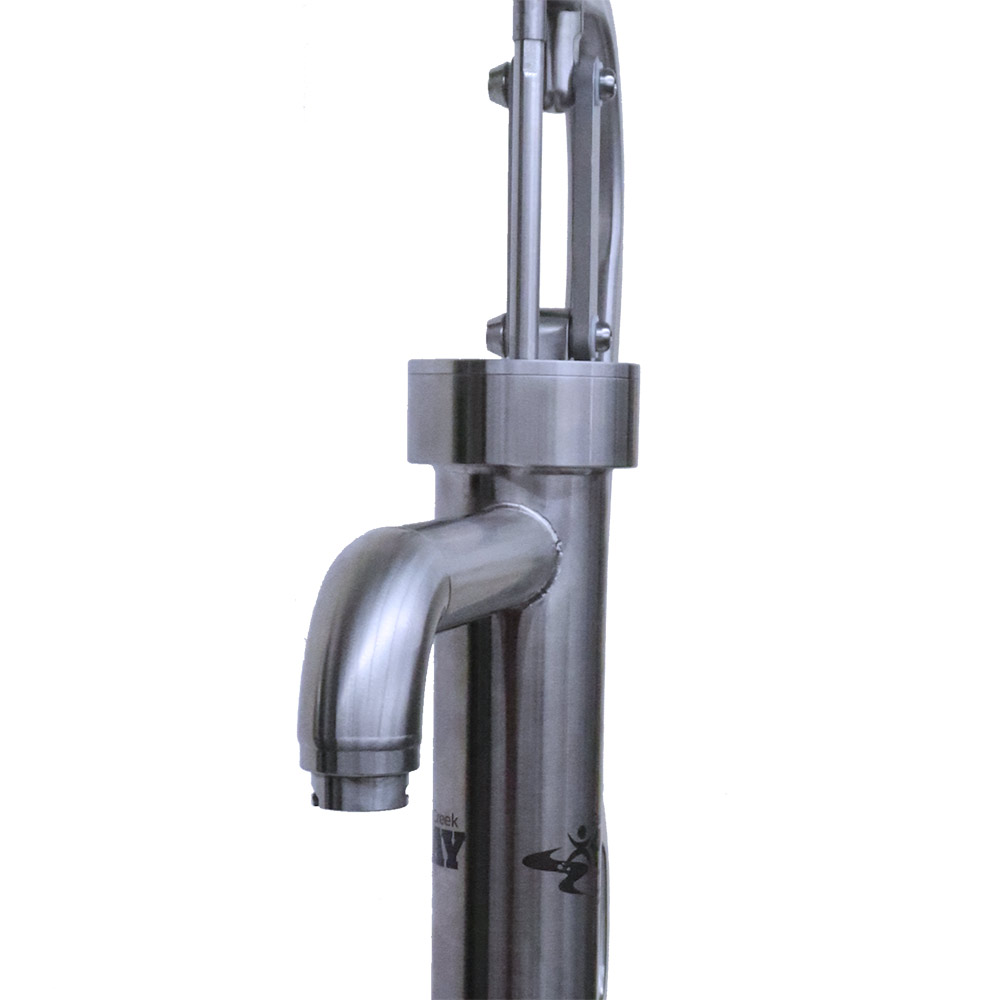

The “Junior” version of the Pump-n-Play Playground Pump System is designed for preschool-aged kids. The above-ground stainless steel tank is shorter, allowing for younger kiddos to easily reach the pump handle. It features a 11 3/4 inch long spout, allowing the water to fall in a designated area. This pump is easy to install and maintain. It has an elegant design but is built for heavy use by little hands. It can also be customized to meet the needs of your project. For example, you can add a Spout & Shout to the nozzle, which causes the water to spray out of the spout as you pump!

The manual hand pump mounted on the enclosed stainless-steel tank presents children with the opportunity to play AND learn. Water play is a key element to sensory play and stimulates young minds in a variety of STEM areas. By pumping the water and playing in it together, they are exploring bubbles, buoyancy, teamwork and cooperation… so many valuable lessons you won’t get from a screen!

GET READY FOR INQUISITIVE QUESTIONS LIKE

  • How does a hand pump work?
  • How much force is required to pump the water?
  • Where does the water come from… and where does it go?

The stainless-steel water play pump system invites a broader discussion about water as a resource, conservation and environmental science!

At Cadron Creek Play, it is our mission to get kids off the screens and into the outdoors. Children are naturally drawn to water. Whether they are playing in a bathroom sink or suddenly sprint to the nearest water fountain, kids seek out water! The Playground Pump encourages that curiosity as it enhances other skills like cooperation, understanding buoyancy, and feeling the weight of water and the amount of force required to lift it. The Pump-n-Play gives children a hands-on learning opportunity that instills a love for exploring with your senses. Feeling the water, getting wet, muddy… this is what childhood is about. THIS is how we learn about the world around us. We hope you’ll join us as we encourage kids to get outside and experience the great outdoors.

Cadron Creek’s Pump-n-Play Junior Playground Pump System is designed for “Little Kids” under the age of 5 years old. While the system may be used for older children, the combined height of the pump and tank (38 5/16 inches) is intended for shorter kids. For big kids, check out the original Pump-n-Play.

Specs

HOW IT WORKS

Water from a pressurized water line (i.e. city water) fills the tank and automatically shuts off at the fill line. Kids then hand-pump the water out of the tank. The water refills as it’s pumped out.

HIGHLIGHTS

  • Playground Pump
    • 22 3/8 inches tall from base to top of the handle
    •  Made of stainless steel: body, handle, rod, hardware
    • Standard 20 7/8 inch long handle
    • Designed for heavy-duty kid traffic
    • 5-year warranty on all manufactured parts
  • Tank
    • 16 inches tall (overall system is 38 5/16 inches tall from the base of the tank to the top of the handle)
    • 14 inch diameter stainless steel tank
    • Connection for a 3/4 inch pressurized water line
    • Access port to turn water on/off to the tank
    • Access port for draining tank
    • Gasket for seal between playground pump and tank
    • Stainless steel cover plate for winterization
    • 5-year warranty on all manufactured parts
  • Accessories
    • PVC pipe to connect to playground pump for access to water from tank
    • Access tool to turn water on/off

SECURITY FEATURES

  • Security nuts for pump handle links
  • Security bolts for pump top plate
  • Security bolts for pump flange
  • Security bit and socket

CONTENTS

  • (1) Stainless Steel Playground Pump
  • (1) Stainless Steel Pump Handle
  • (1) Stainless Steel Tank with Water Connections
  • (1) Stainless Steel Top Plate Cover for Winterization
  • (1) Gasket for Top Plate Cover
  • (1) Security Bolt Tool
  • (10) Security Bolts
  • (1) 1 foot by 1 1/4 inch in Diameter NPT PVC Pipe




Pump-n-Play Junior Diagram



Parts

  • Pump Gasket

    Gasket

    View Details
  • Pump Piston Assembly

    Piston Assembly

    View Details
  • Seal Maintenance Kit

    Seal Maintenance Kit

    View Details
  • Security Bolt

    Security Bolts

    View Details
  • Pump Tank T-wrench

    Tank T-Wrench

    View Details

Accessories

  • Spout & Shout

    View Details
  • Pump Hose Bibb Quick Connect

    Hose Bibb

    View Details
  • Pump Sealing Plug

    Sealing Plug

    View Details
  • Quick connect wrench

    Quick Connect Wrench

    View Details
  • Pump Quick connect O-ring

    Quick Connect O-Ring

    View Details
  • Seal pick tool

    Seal Pick Tool

    View Details
  • Vertical view of quick connect elbow.

    Quick Connect Elbow

    View Details

Warranty

Cadron Creek Play’s products are manufactured in the U.S.A. with the highest quality materials. They are designed to withstand a lot of use, and therefore come with a five-year limited warranty. Our playground pumps are the finest hand pumps on the market with Stainless Steel components, competitive pricing, and expert advice.

Cadron Creek Play Limited Warranty

All Cadron Creek Play pumps and components are covered by a limited warranty. Limited Warranty is contingent upon proper installation, use and maintenance of the pump, part or accessory.

If you suspect a defect, please give us a call or contact us online. We will need as much information as possible to determine the cause of the problem. Please be ready to provide photos or any other information that will be useful in determining whether the product is defective and covered by our limited warranty. We will contact you with a Returned Goods Authorization (RGA) form and shipping label for the return of any defective products.

Not Covered By Warranty

Wear and tear is damage that naturally and inevitably occurs as a result of normal wear or aging. These damaged parts are not covered by our limited warranty.

Installation, Use and Maintenance

Cadron Creek Play provides technical support and education on all products. An Owner’s Manual is included with the purchase of each pump, part or accessory that covers installation, use and maintenance. For each pump, a downloadable diagram is available under the SPECS tab for that pump (just select the respective pump under Products). You may also give us a call or contact us online for any additional support on any of our products.
